Machine vision is used in a variety of industrial processes, such as material inspection, object recognition, pattern recognition, electronic component analysis, along with the recognition of signatures, optical characters. Machine vision is the capability of an industrial computer to perceive the environment. One or more video cameras are used with analog-to-digital conversion and digital signal processing. The image data is sent to the industrial computer or vision robot controller. Now, machine vision systems become more powerful and compact, they will routinely include tracking and traceability functions. The machine vision market is primed for long-term growth.
In order to better contribute to the development of industrial network and machine vision projects in smart manufacturing, TAICENN constantly innovates its products and technologies. Recently, TAICENN has launched a new TBOX-3Tx0 rugged embedded computer system, which aims to continuously empower the manufacturing process and efficiency.
The TBOX-3Tx0 released by TAICENN is a new rugged industrial fanless PoE Box PC model. This machine vision computing system is equipped with Intel’s new 11th Gen. Tiger Lake UP3 Celeron, Core i3/i5/i7 platform with fixed 15W TDP configuration. The product is modular designed with rich I/O interfaces to meet different various requirements in the industrial field. The product can also run stably at -20 to +60 degrees temperature range to meet the application needs of different fields.
Outstanding performance – Intel’s 11th Gen. Tiger Lake UP3
TBOX-3Tx0 Rugged Industrial Box PC adopts Intel’s latest 11th Generation Intel Tiger Lake UP3 processor family. The 11th Gen. Intel® Core™ processors deliver a balance of performance and responsiveness in a low-power platform built on our third-generation 10nm process technology. The platform combines a high-performance CPU, up to 23% faster single-thread performance, and up to 19% faster multi-thread performance. With new Intel® Iris® Xe graphics, the platform offers up to 2.95 times faster graphics performance1, plus PCI Express* 4.0 and Thunderbolt™ 4/USB4.
Exceptional performance and rich IOs – meet different needs
TAICENN TBOX-3Tx0 industrial fanless Box PC is adopted with 1x SODIMM socket, max. up to 32GB DDR4 3200MT/s memory and 1x extreme fast M.2 2280 PCIe x4 NVMe SSDs. TBOX-32×0 is designed with rich IO interfaces, 5x GbE (4x PoE), 4x USB3.0, 2x USB2.0, 1x HDMI, 1x VGA,2x COM, 32x GPIO (optional as TBOX-32×1 model), can meet various of interface requirements and help information transmission more smoothly.
The new rugged Box PC is designed with 1x Mini-PCIe expansion slot, can optional support 3G/4G, Wi-Fi/BT wireless and industrial modules expansion.
Rugged structural design for harsh environmental
The TBOX-3Tx0 structural design can withstand strong vibrations or impacts, and operate normally under extreme weather conditions. To be a strong embedded system used in a harsh environment, TBOX-32×0 supports wide industrial operation temperature (-20~60°C) range, and optional wide voltage (+9 ~ +36 V) input with anti-interference capability protect the computer from overload short circuits and guarantee a normal function system in demanding industrial applications.
Main features:
● Support Intel 11th Gen. Tiger Lake UP3 Celeron, Core i3/i5/i7 processors;
● 1* DDR4 memory socket, max. up to 32GB;
● 1* M.2 2280 (PCIe x4 NVMe), and 1* 2.5” SATA Storage;
● Two independent displays: 1* HDMI, 1* VGA;
● DC 9~36V input, with over-current, over-voltage, polarity protection;
● 5* GLAN (4* PoE), 4* USB3.0, 2* USB2.0, 2*COM;
● Optional 32* GPIO (16* DI, 16* DO);
● 1 Mini-PCIe slots for expansion;
● Industrial -20 ~ + 60℃ operating temperature range.

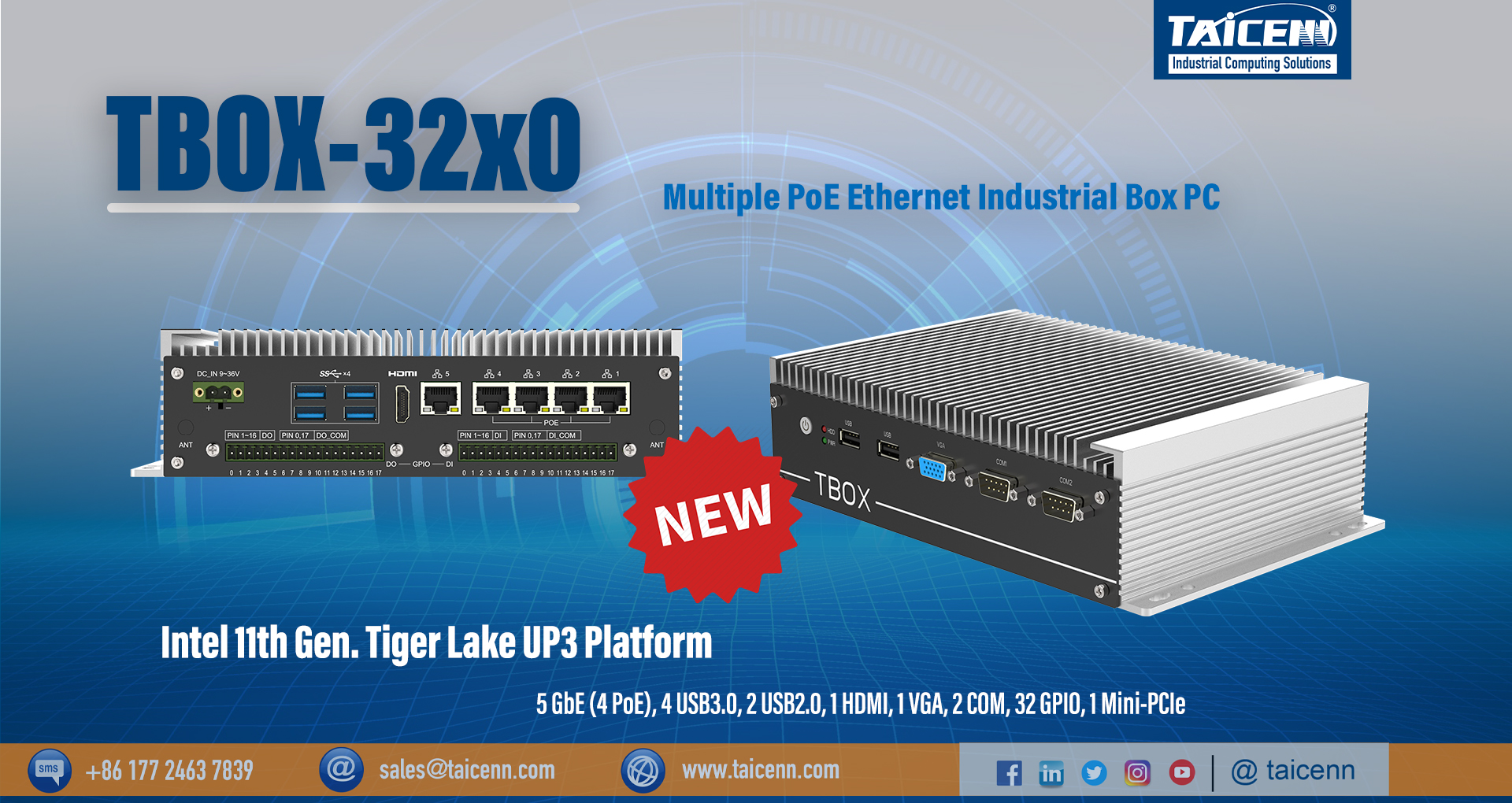

Product Image:
Delivery plan:
At present, TBOX-3Tx0 model products are carrying the technical testing in the house, and we are above to deliver small batch in the end of December. Any further information, welcome to contact with TAICENN sales team.
