Industrial Touch Monitors – For all connections
These multiple signal inputs industrial display&monitor can be mounted into all kinds of automation and industrial control cabinets, with multiple I/O interfaces. TAICENN Industrial touch display&monitors provide a graphical user interface where you may perform tasks such as, operate a machine, view sensor data, or HMI system. These Multiple signal inputs Industrial Touch Display&Monitor have I/Os including VGA, DVI, HDMI, and DisplayPort, so you can easily integrate your touchscreen monitor with your system.
Pcap. Touch Industrial Display & Monitor | TM-PCA Series
1 HDMI + 1 DP + 1 VGA + 1 DVI
Basic Introduction
The PCAP touch technology has the added advantage of durability because it has no degradation to the surface of the display or the performance of the touch sensor. TAICENN TM-PCA series is an enhanced stability and reliability industrial panel mounting monitor product with PCAP Touch technology. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards, TM-PCA series Industrial monitor is modular designed, with rich signal inputs: 1*VGA, 1*DVI, 1*HDMI and 1*DP.
The TM-PCA series uses high-strength steel box structure, so that it can adapt to the harsh industrial site work environment, the most suitable for industrial automation, commercial automation, factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Key Features
● Available dimensions: from 15.0″ to 23.8″ size;
● Aluminum-magnesium alloy, Anodized treatment, modular designed;
● Multi-points (Max. up to 10 points) Pcap. touchscreen, EETI controller;
● Default USB touch interface, optional with RS232 touch interface;
● DC 12V power input, optional with wide voltage DC 9~36V;
● Multiple signal inputs: 1 DVI, 1 VGA, 1 HDMI, 1 DP;
● Panel mount, support VESA 75/100 mount, Front IP65 rate protection.

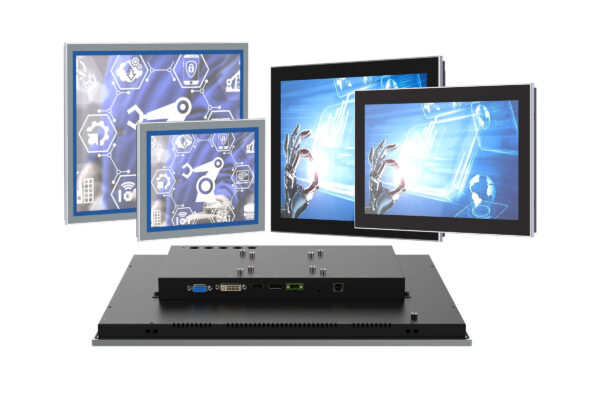

TM-PCA series Image
Reliable Resistive Touch Industrial Display & Monitor | TM-PRA Series
1 HDMI + 1 DP + 1 VGA + 1 DVI
Basic Introduction
As we know, most industrial control systems used resistive touch screens in the past. Its main working principle is that two transparent layers are separated by a thin gap with a gasket. The resistive touch technology offers higher reliability than PCAP technology, but it can only support single one touch point.
TAICENN TM-PRA series panel mounting resistive Touch monitor product offers reliable operation on industrial HMI systems. The design uses a 5-wires precision resistive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards, TM-PRA series Industrial display & monitor is modular designed, with rich signal inputs: 1*VGA, 1*DVI, 1*HDMI and 1*DP.
Key feature
● Available dimensions: from 15.0″ to 21.5″ size;
● Aluminum-magnesium alloy, Anodized treatment, modular designed;
● High temp. 5-wires resistive touchscreen, EETI controller;
● Default USB touch interface, optional with RS232 touch interface;
● DC 12V power input, optional with wide voltage DC 9~36V;
● Multiple signal inputs: 1 DVI, 1 VGA, 1 HDMI, 1 DP;
● Panel mount, VESA 75/100 mount, Front surface IP65 rate protection.

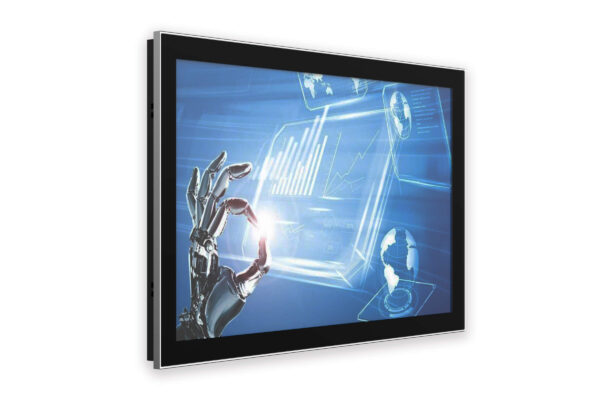

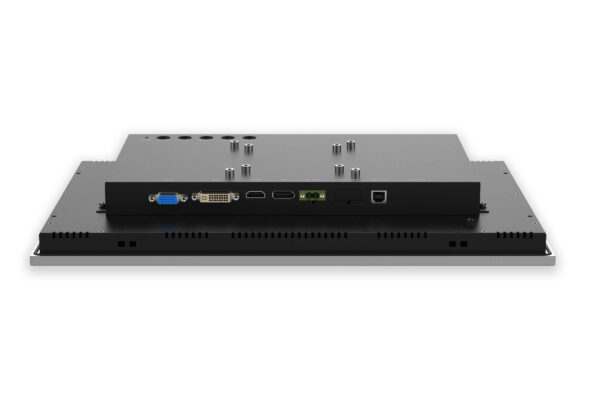

TM-PRA Series Image
TAICENN’s industrial touch display&monitors are rugged HMI solutions that meet the requirements for the most demanding industrial applications. An industrial display can be connected to any computer, but most often times these touch screen monitors are connected to an embedded box PC. They can also be connected to an all-in-one panel computer, where they can act as a cloned display or dual screen monitor. Whether it is factory automation systems or human-machine interfaces (HMIs), Taicenn guarantees top-notch performance along with exceptional display clarity, even in challenging working conditions, thanks to their sunlight-readable technology and anti-glare coatings.
