19.0″ Rack mount Monitors – Mounted Anywhere

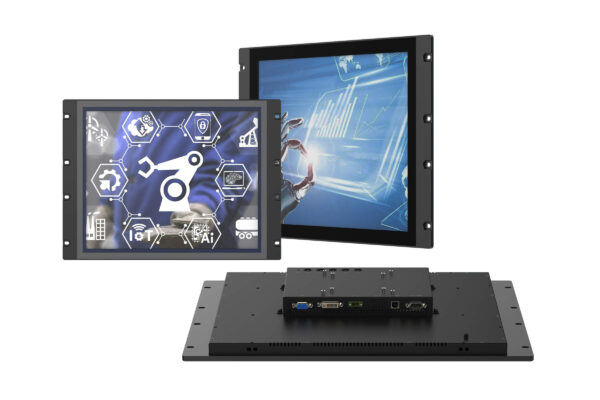

Standard 19.0″ Rack mount monitors integrating an industrial LCD panel into an metal construction for standard 19″ wide rackmount cabinets. A rack mount monitor is an industrial-grade computing screen that has the capability to withstand some of the harshest natural elements and environments imaginable. TAICENN TM-RC/RR Series is standard 19.0” rack mount industrial touch monitor, available with 15.0”, 17.0” and 19.0” LCD screen dimensions. It delivers 2x video signal inputs 1x VGA and 1x DVI ports to fulfill the needs of industrial cabinet applications. The rack mount touch monitor TM-RC/RR series also support VESA 75/100 mount.
Pcap. Touch Rack mount Monitor | TM-RC Series
1 VGA + 1 DVI
Basic Introduction
TAICENN TM-RC series is a 19.0-inch rack mount P-cap. touch industrial monitor product. The design uses a multi-point (10 points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 standards. The rack mount industrial monitor TM-RC series comes with TAICENN modular design, with 1* VGA and 1* DVI dual display input; It comes default with DC 12v and optional with wide voltage DC 9~36v input.
The TM-RC uses rugged and high strength construction with a metal ruggedized housing to fit into the standard 19.0-inch wide rack cabinet. The tempered glass cover with multi points Pcap. touch screen to protect against the impact on the LCD panel and dust.
Key features
● Available with 15.0″, 17.0″ and 19.0″ LCD TFT display;
● Aluminum-magnesium alloy, Anodized treatment, modular designed;
● Multi-points (Max. up to 10 points) projective capacitive touchscreen, EETI controller;
● Default USB touch interface, optional with RS232 touch interface;
● DC 12V power input, optional with wide voltage DC 9~36V;
● Standard 19.0-inch Rack mount, 8U height, Support VESA 75/100 mount;
● Multiple DVI + VGA signal input, support synchronous and asynchronous display;
● IO: 1 VGA, 1 DVI, 1 USB, 1 DC.

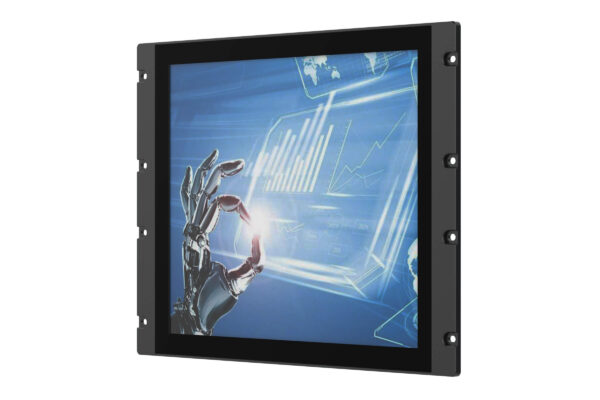

TM-RC Series Image
Resistive Touch Rack mount Monitor | TM-RR Series
1 VGA + 1 DVI
Basic Introduction
TAICENN TM-RR series is a 19.0-inch rack mount Resistive touch industrial monitor product. The design uses a high temp. 5-wires Resistive touch screen, and it can fulfill front panel NEMA/IP65 standards. The rack mount industrial monitor comes with TAICENN modular design, with 1* VGA and 1* DVI dual display input; It comes default with DC 12v and optional with wide voltage DC 9~36v input. This TM-RR rack monitor is ready to mount into standard 19-inch rack mount industrial cabinet.
Key features
● Available with 15.0″, 17.0″ and 19.0″ LCD display;
● Aluminum-magnesium alloy, Anodized treatment, modular designed;
● High temp. 5-wires Resistive touchscreen, EETI controller;
● Default USB touch interface, optional with RS232 touch interface;
● DC 12V power input, optional with wide voltage DC 9~36V;
● Standard 19.0-inch Rack mount, 8U height, Support VESA 75/100 mount;
● Multiple DVI + VGA signal input, support synchronous and asynchronous display;
● IO: 1 VGA, 1 DVI, 1 USB, 1 DC.

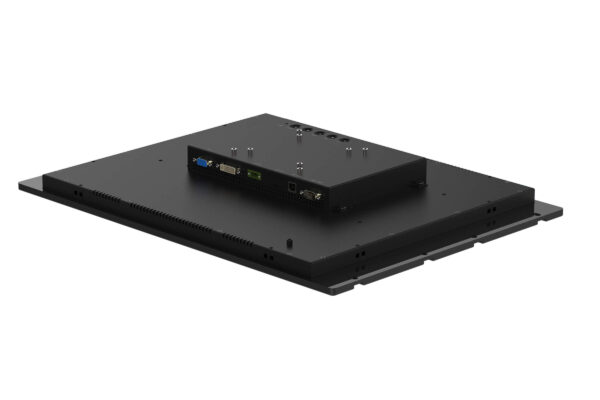

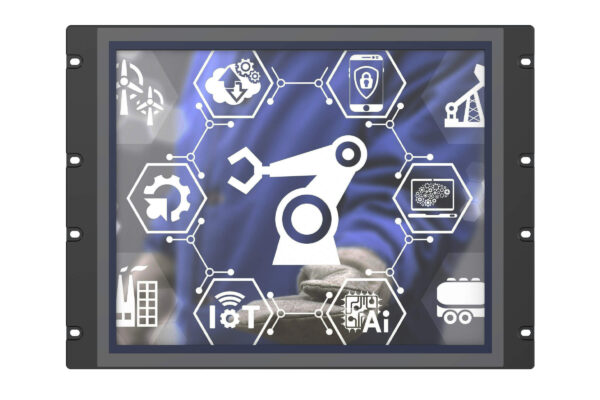

TM-RR Series Image
Taicenn TM-RC&RR series rack mount industrial touch monitor are built to be mounted onto walls or special industrial cabinet and other types of industrial-grade machinery. However, even with their rugged build, these rack mount LCD displays are also ideal for working in less physically demanding environments as well.
