Taicenn, July,2024
After the rugged TBOX-2N15 release, Taicenn Technology now is introducing the latest palm-sized industrial Mini Box PC TBOX-1N15, equipped with Intel® N97 processor chip on Intel 12th Gen. Alder Lake-N architecture, configured with up to 4E-Core. The Intel® UHD Graphics provides powerful graphics processing capabilities. The new TBOX-1N15 Industrial fanless mini pc computer continues the TBOX-1xx5 series modular design concept, designed with rich I/O interfaces, including 2 GbE, 3 USB 3.0 and 3 USB2.0, Audio, 1 HDMI and 1 DP++ ports.
The industrial embedded computer system support TPM2.0 (PTT2.0) and Windows 11 Operating systems, and 1 M.2 B-Key 3042/3052 slot and 1 M.2 (Key-E, 2230 slot, providing super-fast expansion methods, such as wireless WiFi/BT connectivity. It can be an ideal solution for various of industrial projects, including Machine-to-Machine (M2M), smart building automation, industrial automation, Industrial Internet of Things (IIoT), smart manufacturing, industry 4.0, commercial automation.
High performance – Intel’s new 12th Gen. Tiger Lake-N platform
At the heart of these new systems is an Intel N97 processor, which is a 12-watt, 4-core, 4-thread chip with support for CPU speeds up to 3.6 GHz and 1.3 GHz Intel UHD integrated graphics with 24 execution units. It’s not the most powerful or energy-efficient chip in the Alder Lake-N family.
Wide Operating temp. & Rugged Power Input – meet different industrial needs
The cooling system of TBOX-1N15 designs with fanless design for heat dissipation. It can operate in wide operating temp. ranging from -20°C to +60°C range. This rugged Mini PC system design with 12V DC lockable jack power input, providing expandable functions in different industrial applications
Palm-sized – small but functional
Like an audit palm size, TBOX-1N15 is an ultra-small designed embedded system. Its overall dimension is 168.40mm (W) x 110mm (L) x 45mm (H). If without mount ear, its width can be 150mm. What’s more, it is available with Wall mount, and Din-rail mount options. It is an ideal solution for various of embedded applications where space is very limited.
Main features:
● Rugged, Ultra-small, fanless designed box structure;
● Intel 12th Gen. Alder Lake-N, N97 4E-Core processor;
●12V lockable DC jack power input;
● 2 GLAN, optional Wi-Fi/BT expansion;
● 3 USB3.0, 3 USB2.0, 1HDMI, 1 DP, Audio;
● 1 M.2 3042/3052 B-Key slot, and 1 M.2 E-Key 2230 slot;
● Optional support Din-Rail mount;
● Industrial -20 ~ + 60℃ operating range.

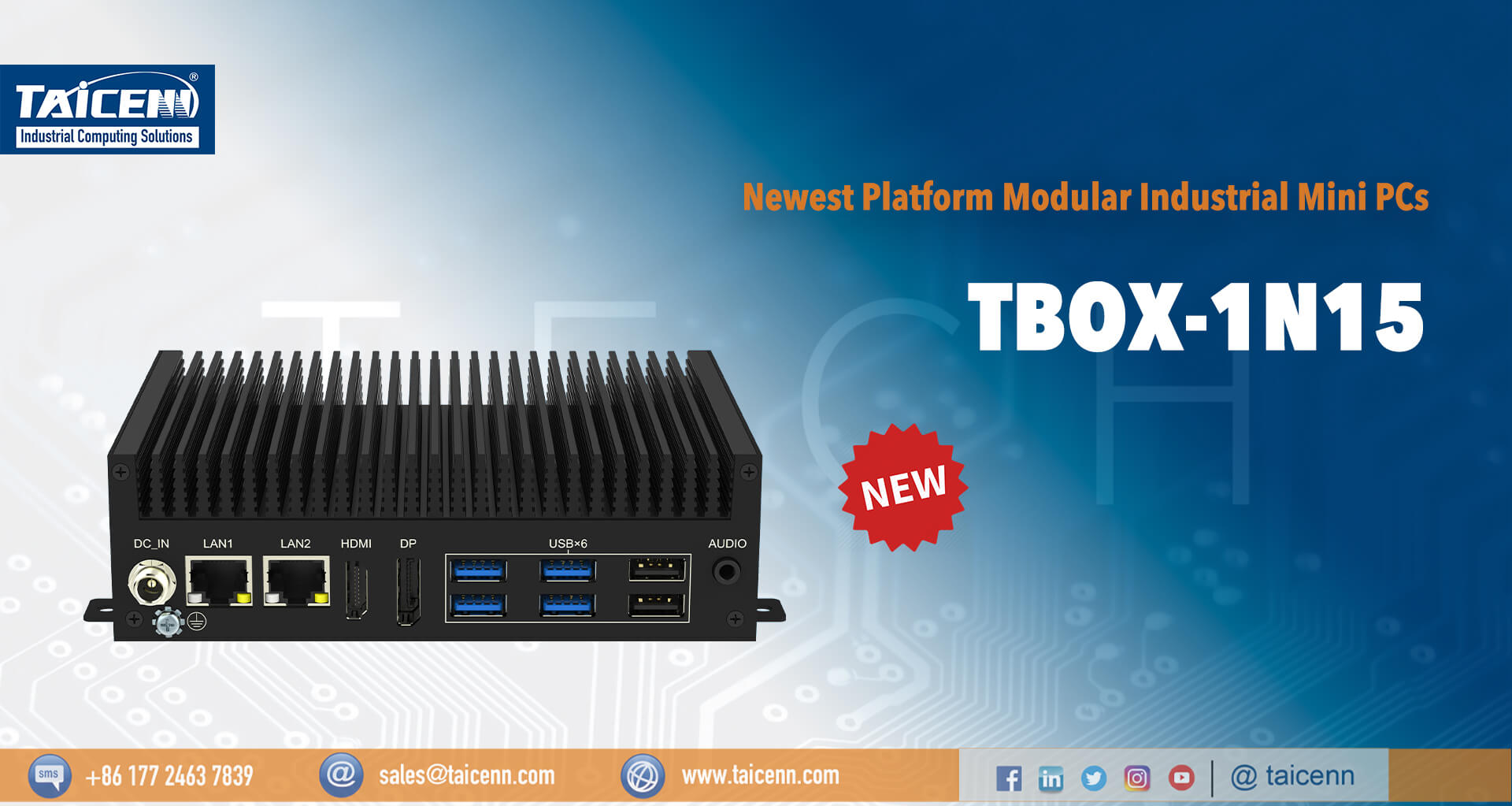

Product Image:
Delivery plan:
In our schedule, TBOX-1N15 model product is above to deliver small and middle batch from the end of July. Sample order is available now. Next, we will release TPC-DCS&DRS N1(Modular slim designed Panel PC) soon. Any further information, welcome to contact with TAICENN sales team.
