TAICENN newest TBOX-3111 Rugged Box PC solutions for industrial machine vision projects

Rugged Box PC solutions for industrial machine vision 2

As we all know, Machine vision is used in a variety of industrial processes, such as material inspection, object recognition, pattern recognition, electronic component analysis, along with the recognition of signatures, optical characters. Machine vision is the capability of an industrial computer to perceive the environment. One or more video cameras are used with analog-to-digital conversion and digital signal processing. The image data is sent to the industrial computer or vision robot controller.
Now, machine vision systems become more powerful and compact, they will routinely include tracking and traceability functions, such as the pharmacy applications, where each pill and bottle is tracked through the manufacturing process. The machine vision market is primed for long-term growth. New non-industrial applications are growing, and with the ease of use, machine vision has an exciting future.

New TBOX-3111 Industrial Box PC

The latest TBOX-3111 model rugged industrial fanless Box PCs with PoE feature from TAICENN Technology, equipped with the Intel Elkhart Lake Celeron J6413 Quad-core processor, with stronger graphic performance (Intel UHD Graphic Gen. 10). The TBOX-3111 industrial box computer is designed with rich IO interfaces. It integrates 4* Intel Gigabit ethernet (3* support PoE function), 2* serial ports (optional 1* RS485), 32* DIO, 6* USB ports (2* USB3.0), 1* HDMI and 1* VGA display ports. The fanless Box PC optional support wireless expansion (1* Mini-PCIe slot) for 3G/4G, WIFI/BT functions. The TBOX-3111 fanless box PC optional provides wide-voltage DC 9~36V power input; the whole system uses a high-strength sheet-metal box structure and a large area heat sink to achieve effective heat dissipation; the operating temperature can support industrial wide temperature -20 ~ +70 range, support wall mount, very suitable for industrial automation, industrial IoT, smart manufacturing, industrial robots, machinery, industrial control equipment, industrial communications and other industries.



Main features:
● Intel Elkhart Lake Celeron J6413 Quad-core processors;
● 1* DDR4 memory socket, max. up to 16GB;
● 1* M.2 M-key 2280 SATA SSD, and 1* 2.5” SATA Storage;
● Two independent displays: 1* HDMI, 1* VGA;
● DC 9~36V input, with over-current, over-voltage, polarity protection;
● 4* GLAN (3* PoE), 6* USB, 2*COM, 32* GPIO;
● 1 Mini-PCIe slots for wireless and modules expansion;
● Industrial -20 ~ + 70℃ operating temperature range.

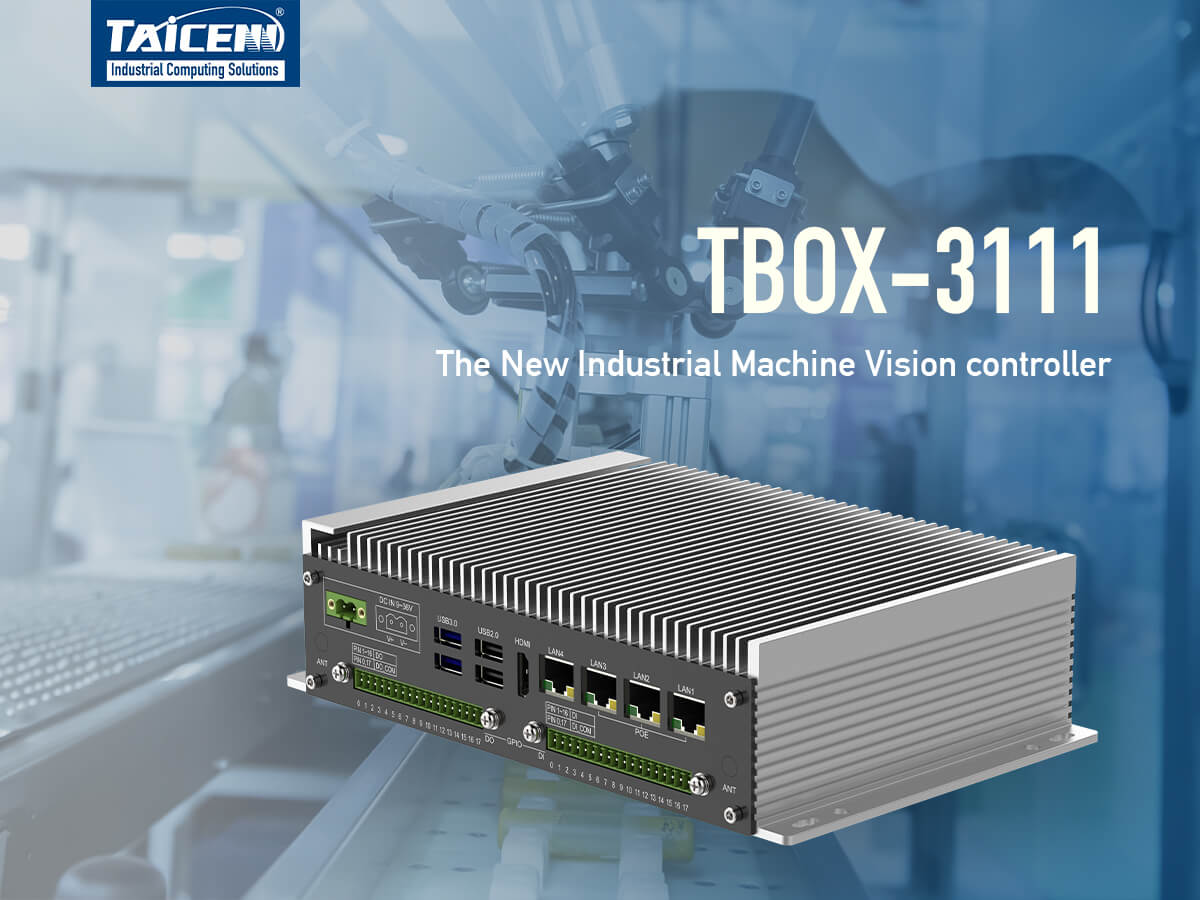

Product Image:

Rugged Box PC solutions for industrial machine vision

Delivery plan:
At present, TBOX-3111 model products have finished the technical testing in the house, and we are above to deliver small batch now. Any further information, welcome to contact with TAICENN sales team.
