With the rapid development of intelligent manufacturing and Industry 4.0, the demand for high-stability industrial computing solutions for industrial applications is becoming more and more abundant. However, the continuous expansion of application scenarios and changes in the economic situation also pose higher challenges to the cost-effectiveness of industrial computing hardware products. In order to better contribute to the development of industrial applications, TAICENN constantly innovates its products and technologies. Recently, TAICENN has launched a new TBOX-2E15 fanless rugged Box PC, which aims to continuously empower the manufacturing process and efficiency.
The TBOX-2E15 launched by TAICENN is a fanless industrial Box PC. The product is equipped with Intel’s new Elkhart Lake J6412 quad-core 2.0G high-performance CPU platform. The product is modular designed with rich I/O interfaces to meet different various requirements in the industrial field. The product can also run stably at -20 to +60 degrees temperature range to meet the application needs of different fields.
Outstanding performance – Intel’s latest 10nm process
TBOX-2E15 industrial Box PCs adopts Intel’s latest 10nm process chip. Compared with the previous generation 14nm process, 10nm technology can not only reduce the chip size by 30%, but also improve the performance by 27% and reduce the power by 40%. consumption (Source from Intel).
The performance of Elkhart Lake J6412 is extremely strong. The CPU mark show it exceeds the 7th Gen. Core i5-7200U series platform and is close to the 6th Gen. i3 desktop platform. From the Single Thread Rating data, J6412 is almost same level as Core i3-6100U. In a word, J6412 is equal to Intel 6th /7th Core i3 performance, but lost cost as J1900/J3455 CPU level. Under such high-cost performance conditions, it is more competitive for various industrial & automation projects, which can reduce costs and increase efficiency for industrial projects.
Rich IOs and expansions – meet different needs
TBOX-2E15 rugged industrial Box PC is designed with rich IO interfaces, 2x GbE, 3x USB3.0, 5x USB2.0, 6x RS232 COM (optional 1x RS485), 2x HDMI, optional 8x GPIO DB9 port, can meet different interface requirements and help information transmission more smoothly.
The new Box PC is designed with two expansion slots (1x Mini-PCIe and 1x M.2 Key slot), can optional support 3G/4G/5G, Wi-Fi/BT wireless expansion. Also, TBOX-2E15 provides more powerful expansion possibilities, and offer flexible and fast expansions for industrial field applications to improve product performance.
Main features:
Rugged & compact, fanless designed box structure;
On-board Intel Elkhart Lake J6412 Quad-core processor;
1* DDR4 memory, single slot, max. up to 32GB,
1* M.2 2280(NGFF) Key-M slot (PCIe x2 NVME) SSD;
DC 12V input, optional wide voltage DC 9~36V input;
2 GLAN, dual wireless expansion 4G/5G, WIFI/BT support;
8 USB (3 USB3.0), 6 COM, GPIO (Optional), 2 HDMI, Audio;
Industrial -20 ~ + 70℃ operating range, optional -40~+80 ℃.

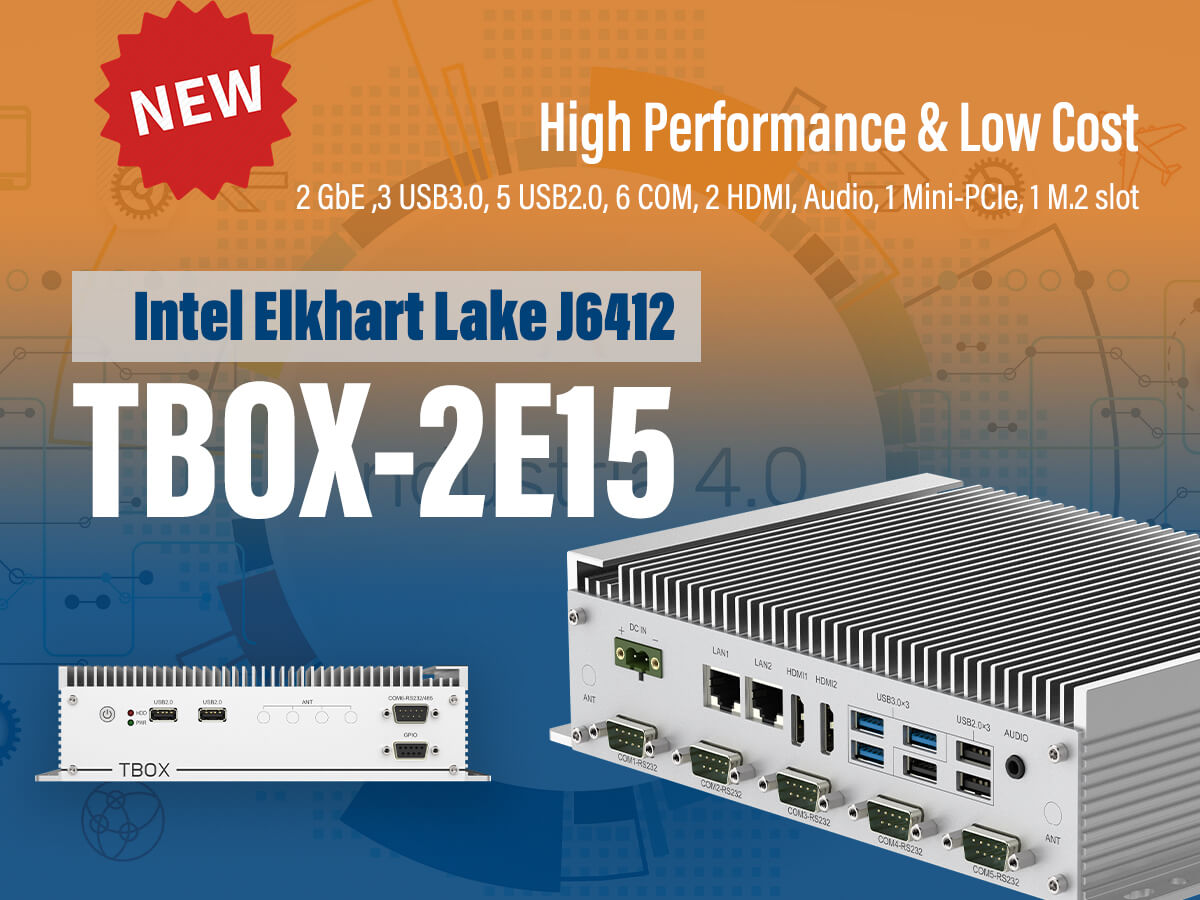

Product Image:
Delivery plan:
At present, TBOX-2E15 model products have finished the technical testing in the house, and we are above to deliver small batch since early September. Any further information, welcome to contact with TAICENN sales team.
