With the continuous active development of modern industry and manufacturing, intelligent manufacturing has higher and higher requirements for advanced industrial computing, and computing power and image computing are becoming more and more frequent. Continuous optimization for improved computing performance, low power consumption and long-term stability are also becoming more important. In order to better contribute to the development of industrial projects, TAICENN constantly innovates its products and technologies. Recently, TAICENN has launched a new TBOX-2Tx5 rugged embedded computer system, which aims to continuously empower the manufacturing process and efficiency.
The TBOX-2Tx5 released by TAICENN is a new rugged industrial fanless Box PC model. This embedded system is equipped with Intel’s new 11th Gen. Tiger Lake UP3 Celeron, Core i3/i5/i7 platform with 12W to 28W TDP. The product is modular designed with rich I/O interfaces to meet different various requirements in the industrial field. The product can also run stably at -20 to +60 degrees temperature range to meet the application needs of different fields.
Outstanding performance – Intel’s 11th Gen. Tiger Lake UP3
TBOX-2Tx5 Rugged Industrial Box PC adopts Intel’s latest 11th Generation Intel Tiger Lake UP3 processor family. The 11th Gen. Intel® Core™ processors deliver a balance of performance and responsiveness in a low-power platform built on our third-generation 10nm process technology. The platform combines a high-performance CPU, up to 23% faster single-thread performance, and up to 19% faster multi-thread performance. With new Intel® Iris® Xe graphics, the platform offers up to 2.95 times faster graphics performance1, plus PCI Express* 4.0 and Thunderbolt™ 4/USB4.
Exceptional performance and rich IOs – meet different needs
TAICENN TBOX-2Tx5 fanless Box PC is adopted with 1x 260-pin SODIMM socket, max. up to 32GB DDR4 3200MT/s memory and extreme fast M.2 NVMe PCIe SSDs. TBOX-2Tx5 is designed with rich IO interfaces, 2x GbE, 4x USB3.0, 4x USB2.0, 2x HDMI, 6x COM, 1x 8bit GPIO (optional), Audio, can meet basic interface requirements and help information transmission more smoothly.
The new rugged Box PC is designed with two expansion slots (2x M.2 Key slot), can optional support 3G/4G/5G, Wi-Fi/BT wireless expansion. Also, TBOX-2Tx5 provides more powerful expansion possibilities, and offer flexible and fast expansions for industrial field applications to improve product performance.
Rugged structural design for harsh environmental
The TBOX-2Tx5 structural design can withstand strong vibrations or impacts, and operate normally under extreme weather conditions. To be a strong embedded system used in a harsh environment, TBOX-2Tx5 supports wide industrial operation temperature (-20~60°C) range, and optional wide voltage (+9 ~ +36 V) input with anti-interference capability protect the computer from overload short circuits and guarantee a normal function system in demanding industrial applications.
Main features:
● Rugged, fanless designed box structure;
● Intel 11th Gen. Tiger Lake UP3 Celeron, Core i3/i5/i7 processor, BIOS fixed 15W TDP;
● 1 SODIMM DD4R 3200 MT/s memory, max. up to 32GB;
● DC 12V input, optional wide DC 9~36V input, with over-voltage, polarity protection;
● 2 GLAN, optional with 3G/4G/LTE/5G, and Wi-Fi/BT expansion;
● 4 USB3.0, 4 USB2.0, 2 HDMI, 6 COM, 1 GPIO (optional), Audio;
● 2 M.2 expansion slots for wireless.
● Industrial -20 ~ + 60℃ operating range;

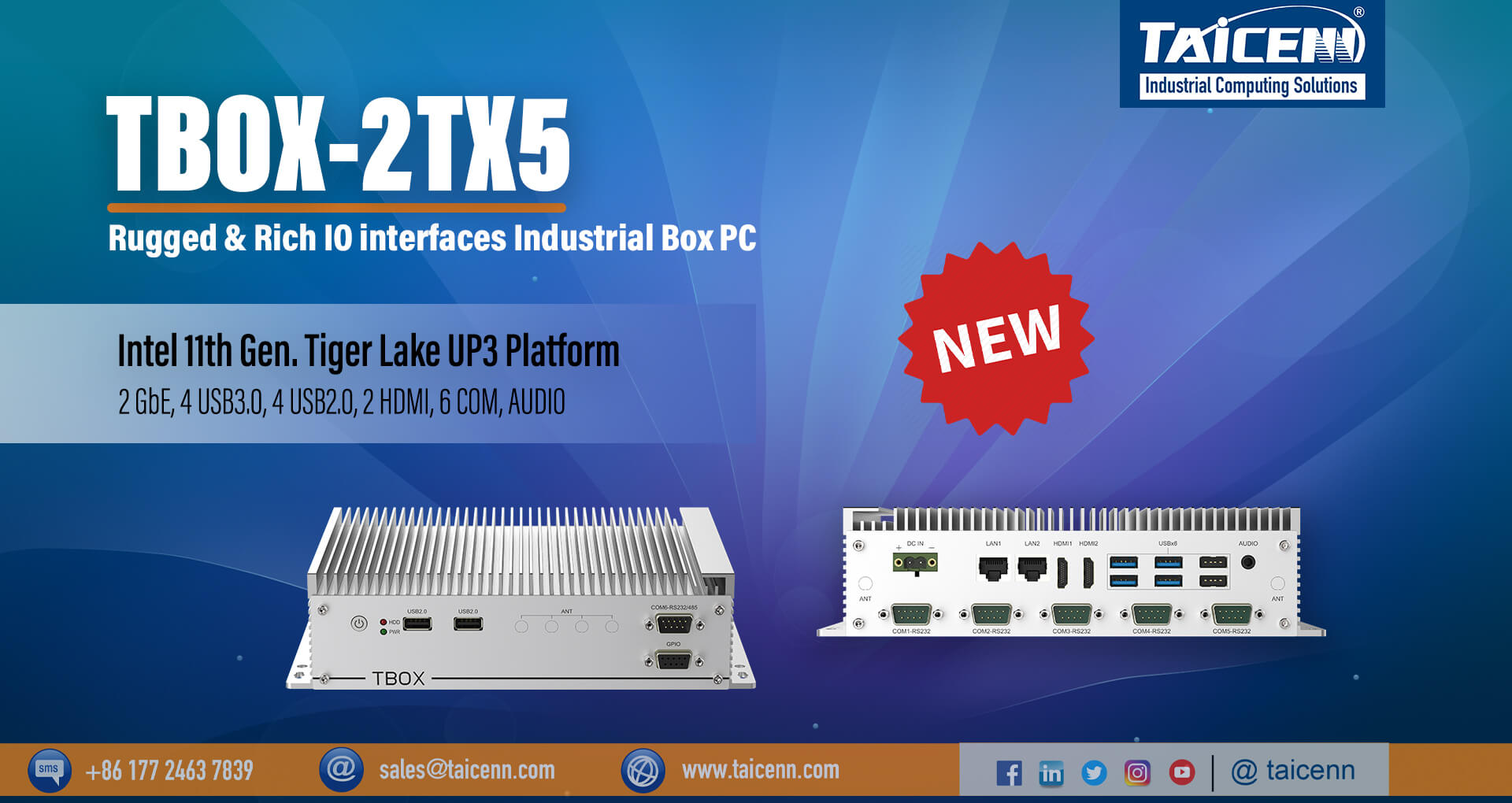

Product Image:
Delivery plan:
At present, TBOX-2Tx5 model products are carrying the technical testing in the house, and we are above to deliver small batch in early December. Any further information, welcome to contact with TAICENN sales team.
